Hand Scanner

Order our German catalog here

Robust Hand Scanners For Every Days Use

	HL-02 Hand scanner – Powerful scanner with external electric supply The TEXAS TRADING hand reader HL-02 can read all transponders (electronic ear tags, chips and boluses) due to the world wide norms DIN ISO 11 784 and DIN ISO 11 785. The scanning is started with the press of a button and the red display bulb lights. If an electronic animal number is found the green LED and a short peep tone will signalise that. The scanner can store up to 1600 numbers in a cache memory or transfer it immediately to the controlling computer. The HL-02 has protection class IP67, and is therefore water and dust proof. It can take falls from 1 m height on a concrete floor, but can´t be used as a cattle moving stick! The hand scanner HL-02 has a spiralled cable which is 3 m long if stretched. The scanner is connected with the controlling computer by a 9 wired plug, which also provides the voltage supply. The scanning report can be easily adjusted with the delivered configuration software. Content of delivery Hand scanner HL-02 complete with RS-232-interface, battery connection cable and configuration software. The scale FX41 and the HL-02 are well suited to each other and communicate well together. The combination enables a cheap start into the weighing of electronically marked animals. Technical data Size 430 x 30 x 50 mm Ø Weight 720 g inclusive cable Display red and green LEC, bleeper Electric supply external with 6 or 12 Volt Environment water and dust proof (IP67) Reading distance up to 35 cm with ALLFLEX EET

	GES3S The new DATAMARS reader "GES3S" has been especially designed as portable livestock identification device with best-in-class reading performance. Fully water-proof (IP 67 class), the GES3S can be perfectly used for working in outdoor field conditions and reads all ISO HDX and FDX-B transponder in accordance to ISO Standard 11784/5 and ISO 11784-AMD1. Technical data Size 223 x 108 x 41 mm Weight 326 g Display TFT LCD color display multiline diverent sounds for signals Electric supply Akku 3,7 V / 2500 mAh Interface USB and Bluetooth Memory 1 GB Scanning distance 30 cm at ALLFLEX ear tag EET Content Of Delivery Hand scanner with USB wire for data transfer and charging batteries, battery charger for power, software package RumiSoft, shoulder strap, storage case

	AL-PKR Pocket scanner for small animals and horses Handy ISO pocket scanner for small animals and occasional readings. For all tranponders due to ISO 11 784 and ISO 11 785. One button operation to turn on and to read. Three further buttons are for changing the reading settings. The successful readings are signalled with red LCD and beeper, the 2 lined LCD display switches over to the new animal number. The scanner switches automatically off when unused. Operation with 9-V-block (Alkali-Manganese) which lasts for approx. 2500 scannings. Technical data Size 125 x 70 x 24 mm Weight 180 g (with installed 9-V-block) Display 2 lines à 8 digits Electric supply 9-V-block Scanning distance 5 cm at ALLFLEX chip INJ12 10 cm at ALLFELX eat tag EET Content Of Delivery Pocket scanner ready to use with 9-V-block, protection bar with clip

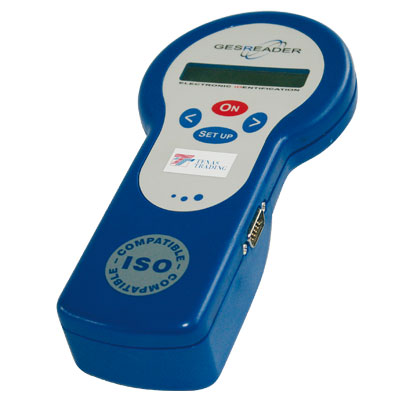

	GES1S Hand scanner gesreader 1 S for pigs The Gesreader 1 S is a hand scanner for displaying electronic animal numbers for all electronic ISO-ear tags, -chips and boluses. After turning on, the tranponder is read in a radius of 25 cm and the number is shown on the big, two lined display. The successful scanning is indicated by a beeper. The scanner switches off independently after 15 seconds for energy saving. For the comfortable scanning of boluses a bar antenna is available as additional equipment. Technical data Size 205 x 100 x 40 mm Weight 335 g Display 2 lines à 16 digits Electric supply large integrated accumulator Reading distance 25 cm at ear tag EET
