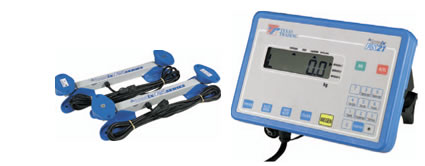

Weighing system FX21 – the right weighing system for dairy farmers
It is important that the dairy farmer knows the conditions and weights of his/her cows. Selective, individual feeding or the choice of a suitable TMR group increase milk yield.
Use
The FX21 is the flexible scale to use for fast weighing of herds or animal groups with its various functions and single animals memory. The FX21 saves at each weighing a 6 digit animal number, a 2 digit body condition and weight. The weighing is saved in 99 groups. The animals can be sorted into 3 weight classes, defined by you. Analysis is available for every weight group and weight class.
Electric supply
The integrated lead-gel-accumulator enables 10 – 12 hours of weighing, independent from the mains supply. A lead-gel-accumulator provides also a long operation at low temperatures – important for outdoor operation in the fall, winter and spring. Delivery includes the charger.
Data memory and transfer
The internal memory of the scale is sufficient for 3200 data records. These data can be correctly transferred to the PC with the separate transfer programme FX-Link. Weighing and statistics are printable with the optional FX-printer.
Weighing beams
The FX21 is delivered with the robust, light aluminium weighing beam with 2 tonne load capacity. The leg construction buffers pushes and takes side loads trouble-free. |
|
Display
| Key board |
robust, coloured function buttons and number block |
| Display |
6 digit 24 mm high LCD display |
| Measurements |
280 x 186 x 90 mm (without handle) |
| Weight |
2,4 kg (including handle)
integrated 12-V-accumulator with charger for 230 V mains. |
| Supply |
Operation is possible on 12-V-DC supply. Low voltage display, protection from low discharging |
|
|
Aluminium weighing beams
| |
Type WB6A |
Type WB1A |
| Length |
606 mm |
1006 mm |
| Measurements |
bore distance |
bore distance |
| A |
512 mm |
912 mm |
| B |
546 mm |
946 mm |
| Width |
180 mm |
180 mm |
| Height |
100 mm |
100 mm |
| Weight |
2 x 5,5 kg |
2 x 7,0 kg |
| Version |
powder coated aluminium, water-proof, robust leg and standing are construction with rubber buffer, 6 m connection cable with water-proof plugs and protection cap. |
|
|
 |

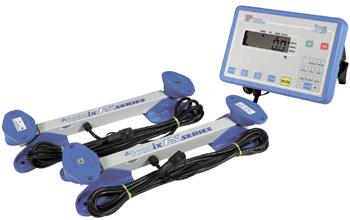

FX21-6
Weighing system FX21
with holding frame, accumulator charger and battery connection cable.
Set of Aluminium weighing beams 60 cm |
|
 |
FX21-1
Weighing system FX21 with holding frame, accumulator charger and battery connection cable.
Set of Aluminium weighing beams 100 cm |
|
|
